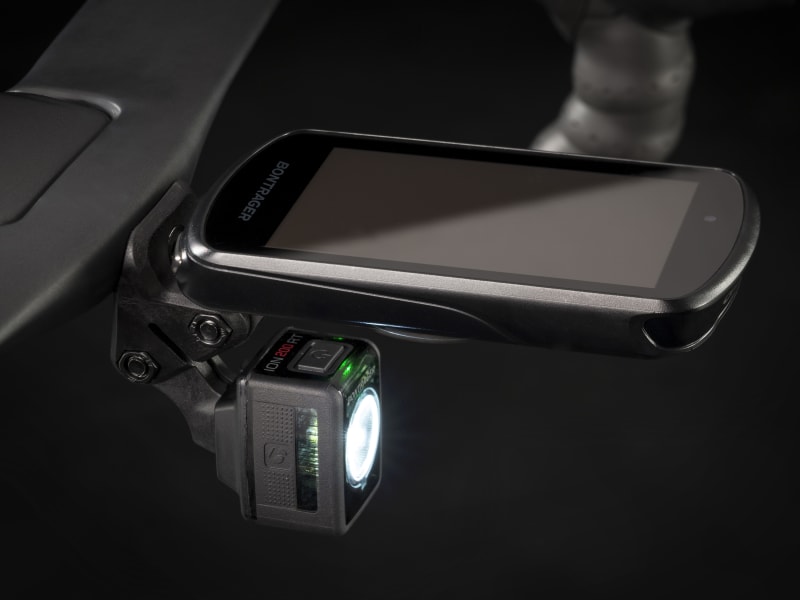

Accessories shown here are sold separately

ARCHIVED

2020

Madone SLR 7 Disc

Model 591267

Confirm delivery options

Address details

Address line 1 * (required) Note: We do not offer delivery to PO boxes, hotels, and freight forwarding addresses. Bikes cannot be delivered to FPO/APO addresses due to size restrictions on deliveries.
Address line 2
City * (required)
State * (required)
ZIP/postal code * (required)

Direct-to-home shipping

Get your most accurate shipping costs. We offer free ground (for orders over $49.00), 2-day, and overnight shipping options.

Premium home delivery

Confirm you’re in the selected retailer’s delivery area.

Find a retailer

Sorry we could not find any results for your search.

Pricing details

Retailer price

Retailer pricing applies when you purchase goods online that the shop has in stock today. Order is subject to retailer acceptance.

Comp. Value

Our “Comparable Value” (Comp. Value) prices are based on the prices charged by Trek or other retailers, in-store or online, for the same or similar items. In most cases, this is a price at which Trek has offered the item for sale, and also the MSRP we provide to third-party resellers based on the prices of competing items in the market.

In-store pickup

Direct-to-home shipping

Sorry, we do not have a replacement available for this item

Frame	700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork	Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight	8.10 kg / 17.85 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter	Shimano Ultegra Di2, R8070, 11 speed
Front derailleur	Shimano Ultegra R8050 Di2, braze-on
Rear derailleur	Shimano Ultegra R8050 Di2, short cage, 30T max cog
*Crank	Size: 50, 52 Shimano Ultegra R8000, 50/34 (compact), 170mm length
	Size: 54, 56 Shimano Ultegra R8000, 50/34 (compact), 172.5mm length
	Size: 58, 60, 62 Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom bracket	Trek BB90
Cassette	Shimano Ultegra R8000, 11-28, 11 speed
Chain	Shimano Ultegra HG701, 11 speed

Wheel front	Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle
Wheel rear	Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, Shimano 11/12-speed freehub, 142x12 thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
Max tire size	28mm

Saddle	Bontrager Aeolus Elite, austenite rails, 145mm width
*Seatpost	Size: 50, 52, 54, 56 Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length
*Seatpost	Size: 58, 60, 62 Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
*Handlebar	Size: 50, 52 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width
	Size: 54, 56 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width
	Size: 58, 60, 62 Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 50, 52, 54 Trek Madone aero, invisible cable routing, 7 degree, 90mm length
	Size: 56, 58 Trek Madone aero, invisible cable routing, 7 degree, 100mm length
	Size: 60, 62 Trek Madone aero, invisible cable routing, 7 degree, 110mm length
Brake	Shimano Ultegra hydraulic disc, flat mount
Brake rotor	Shimano RT800, centerlock, 160mm

Simple and intuituve e-bikes, paired with legendary Townie^® comfort and control.

The simplicity of a single-speed beach cruiser with the power of an electric bike.

A lightweight commuter e-bike designed with functionality, versatility and style.

A super fun and versatile throttle electric bike setting the standard in function, style and safety.

An e-bike so capable it can be your legit transportation alternative.

E-bike Guides

E-bike Resources

Townie^® is the perfect ride-around-town bike.

The classic look of a beach cruiser with Electra comfort and style.

A modern city bike with the versatility to handle the rigors of the road.

Easy-to-ride and fun bikes for kids ages 3 to 8.

Madone SLR 7 Disc

Sizing

Geometry

Madone SLR 7 Disc

Find related parts

Product Compare Rack

SHOP

ABOUT ELECTRA

SUPPORT

LEGAL

Size	Rider Height	Inseam
50	158 - 163 cm 5'2" - 5'4"	74 - 77 cm 29" - 30"
52	163 - 168 cm 5'4" - 5'6"	76 - 79 cm 30" - 31"
54	168 - 174 cm 5'6" - 5'9"	78 - 82 cm 31" - 32"
56	174 - 180 cm 5'9" - 5'11"	81 - 85 cm 32" - 33"
58	180 - 185 cm 5'11" - 6'1"	84 - 87 cm 33" - 34"
60	185 - 190 cm 6'1" - 6'3"	86 - 90 cm 34" - 35"
62	190 - 195 cm 6'3" - 6'5"	89 - 92 cm 35" - 36"

Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack	Saddle rail height min (w/short mast)	Saddle rail height max (w/short mast)	Saddle rail height min (w/tall mast)	Saddle rail height max (w/tall mast)
50cm	700c	45.3	74.6°	11.1	72.1°	52.1	7.2	41.0	4.5	6.2	97.4	71.1	37.8	52.1	58.5	64.5	62.0	68.0
52cm	700c	48.3	74.2°	12.1	72.8°	53.4	7.2	41.0	4.5	5.8	97.7	73.2	38.3	53.3	61.5	67.5	65.0	71.0
54cm	700c	49.6	73.7°	13.1	73.0°	54.3	7.0	41.0	4.5	5.6	98.1	74.4	38.6	54.1	64.0	70.0	67.5	73.5
56cm	700c	52.5	73.3°	15.1	73.5°	55.9	7.0	41.0	4.0	5.8	98.3	76.8	39.1	56.3	67.0	73.0	70.5	76.5
58cm	700c	55.3	73.0°	17.1	73.8°	57.4	6.8	41.1	4.0	5.7	99.2	79.3	39.6	58.1	69.0	75.0	72.5	78.5
60cm	700c	57.3	72.8°	19.1	73.9°	58.6	6.8	41.1	4.0	5.6	100.1	81.1	39.9	60.1	71.0	77.0	74.5	80.5
62cm	700c	59.3	72.5°	21.1	73.9°	59.8	6.8	41.2	4.0	5.6	101.0	82.9	40.3	62.0	73.0	79.0	76.5	82.5
